DMU - series

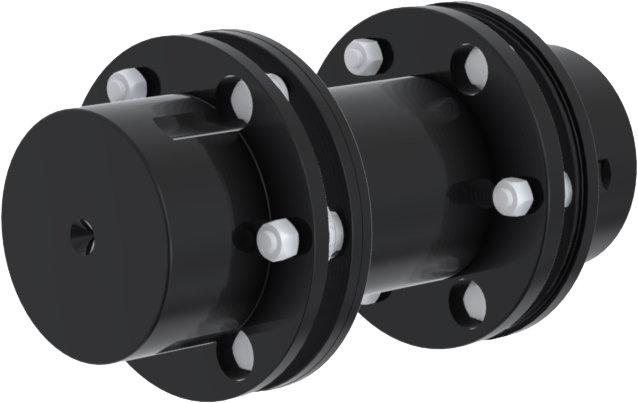

Characteristics of the Escodisc DMU series couplings
Disc couplings are of an all-metal, non-lubricated design and are torsionally stiff. The torque is transmitted by means of discs, which are alternatively mounted (on the same bolt circle) to the drive and driven flange of the disc pack assembly.
The misalignment capacity depends on the pack thickness, the disc material, the amount of drive bolts and the free span of the material between the drive bolts.
The total torque capacity depends on the disc pack thickness, total number of drive bolts and their bolt circle.
Disc couplings will in most cases have two flexible elements and a spacer. As all parts are positively connected, this disc coupling ensures good inherent balancing properties and is hence often used at motor speeds without additional balancing. Escodisc couplings meet the API 610 standards.
The Escodisc DMU series is built for infinite life and to meet the demands of the market for efficiency, lower maintenance and reduced life cycle costs. It is the ideal solution to a multitude of applications up to 260,000 Nm (and larger upon request), thanks to its high torque, bore and misalignment capacities, its high degree of natural inherent balance (lower AGMA class 9) up to size 85.
The ESCO advantage
The Escodisc DMU series offers:
Unitized disc pack that can be replaced on site
Discs with an optimized shape unitized as a pack
Fillers avoiding contact between discs hence no fretting corrosion
Coasting down torque transmission guaranteeing in case of disc pack failure
Easy assembly and disassembly
Alike the other Escodisc couplings, the Escodisc DMU – series also offers:
Optimized shaped stainless-steel discs for equal load distribution
No problems in dirty and corrosive environments due to the use of stainless steel discs and protected bolts
AISI 301 Full hard stainless-steel discs
Special plated hardware
Precisely drilled and reamed flange holes
Black oxyded overall steel parts, oiled for protection
High torque and high continuous misalignment capacity
Very low and predictable reaction forces on associated equipment
No disc buckling, no fretting corrosion between the discs
Adjustable spacer design for easy accommodating DBSE changes
Temperature range -40°C to 270°C
Other types available - on request
Limited end float
With integrated brake disc
Spacer up to 5,000mm+
Spacer length can be suited for request up to 5,000mm+
Cylindrical bore and keyway
ESCO uses H7 as standard bore tolerance and keyway is according DIN6885/1
External clamping device
Internal clamping device
Split clamping hubs
