Flexible Couplings...

Gear type couplings

Designed and optimized with the highest quality Multicrown gearing, the Escogear couplings allow the transmission of the highest torque under the highest misalignment conditions using their large bore capacity. Robust, efficient and built for a long service life, they are the ideal solution for heavy duty machines as well as for specific industries such as steel, power generation, pulp & paper, marine, dredging, ...

Disc type couplings

Developed to ensure infinite lifetime while transmitting the highest torques at high misalignment, temperatures and speed, even in aggressive and dusty atmospheres, the Escodisc couplings are reliable and require no lubrication. Their discs assemblies are fretting corrosion-free, maintenance-free, and meet the most diverse application requirements in diverse industries such as petrochemicals, cement, test benches, power generation, ...

Elastic type couplings

Made typically for classic motor speed applications in the robotics, logistics, food processing, textile, … sectors, the Escoflex and Esconyl series, the non-ferrous Elastic couplings, are easy to mount and provide some vibration damping between the motor and the driven equipment.

Grid type couplings

Designed to combine the economy and high-torque capacity of a gear coupling with the torsional flexibility of an elastomer coupling, the Escogrid couplings are ideal for use in general purpose applications and offer the lowest lifetime operating cost.

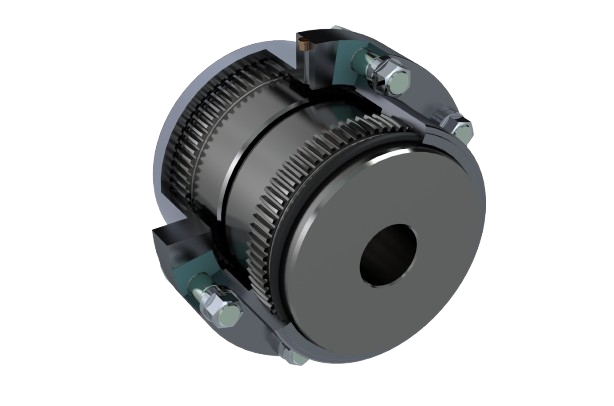

F - Series

f-series
Multicrown gearing
Torque up to 5,040,000 Nm+
Bore up to 1,130 mm+

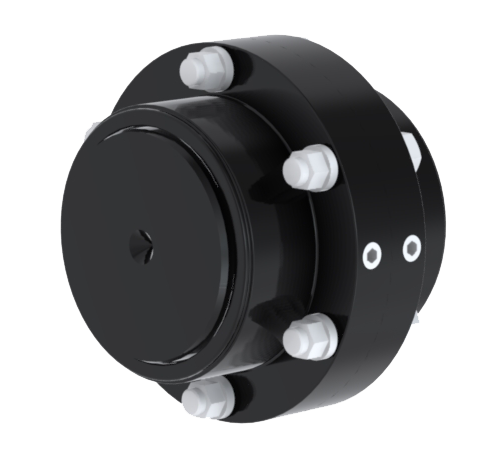

FTRN - series

FTRN - series
Multicrown gearing for high-misalignment rail traction
Torque up to 30,000 Nm+
Bore up to 120 mm+

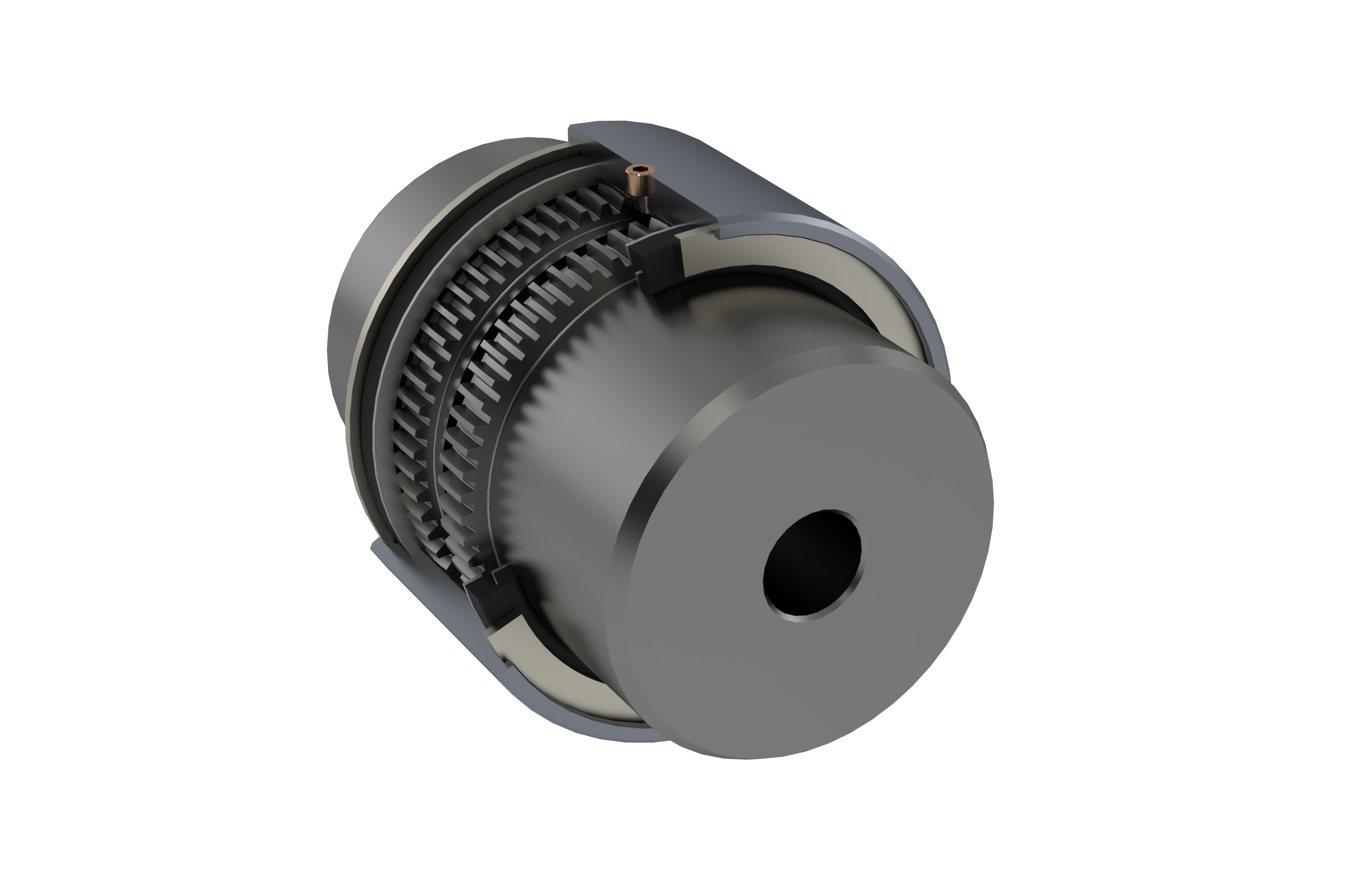

C & C-M - series

C&C
Multicrown gearing with continuous sleeve design
Torque up to 348,000 Nm+
Bore up to 290 mm+

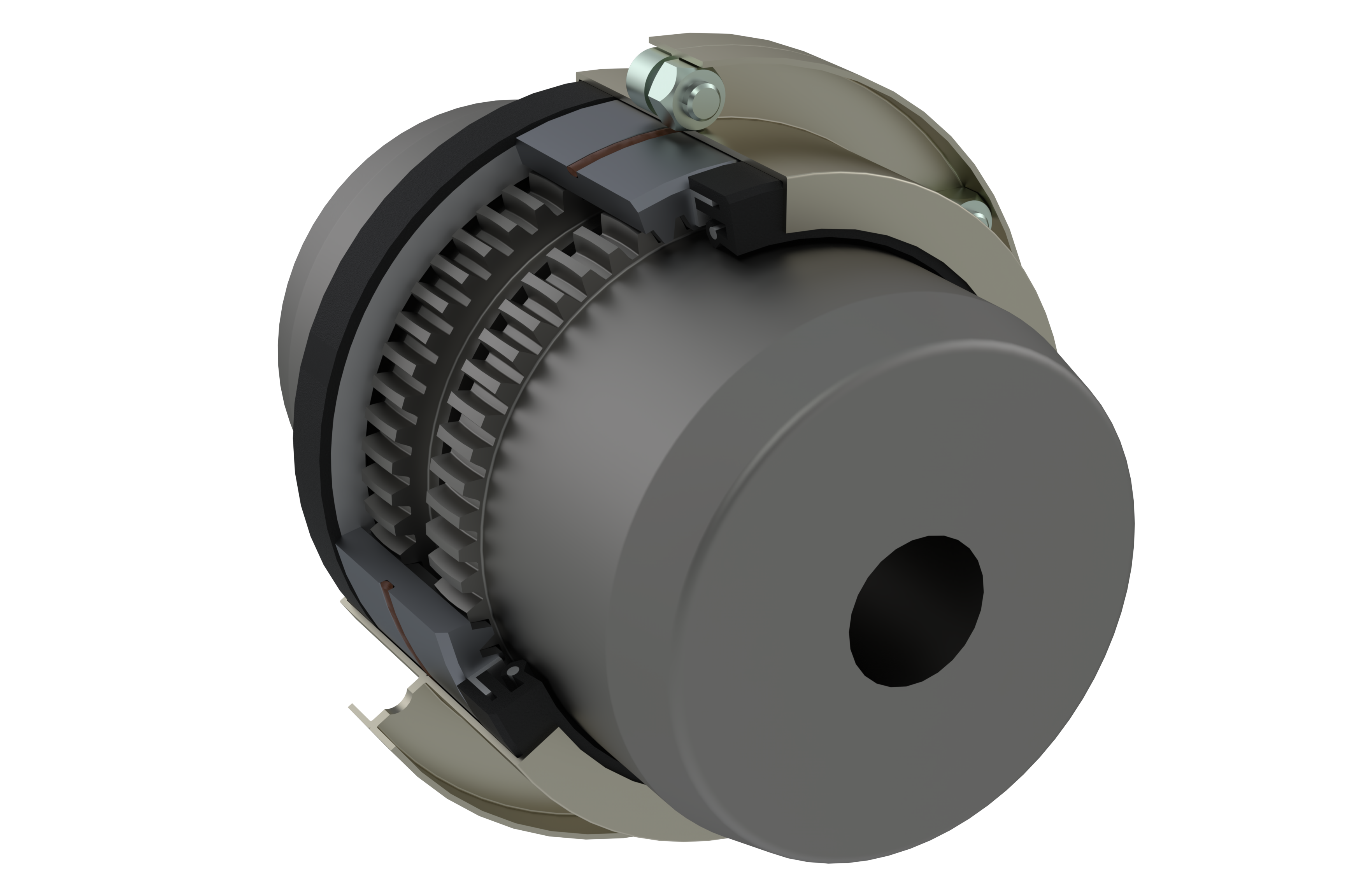

N - series

N
Continuous geared sleeve with steel covers, basic design
Torque up to 2000 Nm
Bore up to 85 mm

High speed - series

High speed - series
Multicrown gearing version application-wise customized with weight-optimized flanges and hubs, oil or grease lubricated, balanced for high rotation speed up to 20,000rpm

FWMO - variant

esco-gear-fwmo-couplings
Multicrown gearing optimized for wind mill applications accommodating misalignment combinations up to 2 (4) degrees
Torque up to 260,000 Nm
Bore up to 240 mm

DPU - series

DPU - series
Multidisc and flange packed subassembly version with anti-spark and anti-fly (optional)
Torque up to 23,100 Nm
Bore up to 220 mm

DMU - series

DMU - series
Multidisc pack version
Torque up to 260,000 Nm
Bore up to 370 mm

DMUCC - series

DMUCC - series
Multidisc pack version with extremely short DBSE
Torque up to 29,600 Nm
Bore up to 350 mm

DLC - series

dlc-45
Single disc version
Torque up to 1,600 Nm
Bore up to 105 mm

high-speed - series

High speed series
Multidisc pack subassembly version application-wise customized with weight-optimized flanges, anti-spark and anti-fly, balanced for high rotation speeds of up to 22,000 rpm

DWMO - variant

dwno
Multidisc pack subassembly version application-wise customized optimized for windmill applications, accommodating misalignment combinations up to 2 degrees
Torque up to 260,000 Nm
Bore up to 370 mm

Escoflex A - series

Esco 1010
Rubber inserts and cast-iron hubs version
Torque up to 2,850 Nm
Bore up to 100 mm

... for various industries

Agriculture

Machine and plant building, compact machines, pumps and fans, conveyors, compressors, elevators, lifting and crane applications, building automation HVAC, packaging machines, industrial applications, textile machines, heating, ventilation and air-condition.

Cement

The cement industry needs rugged and reliable drive systems as chocks and aggressive environmental influences are quite demanding for production installations. Power transmission products should be selected taking this into account and therefore, well-sealed products are preferred to avoid contamination by dust penetration. Escogear and Escodisc couplings have optimized design features such as flange connections and a sealing system to comply with this requirement.

Food industry, oil mills and meat processing

Today, meeting the increased demand for natural oils depends on the reliability and production capacity of oil mills, which are at the heart of the current bio-based nutrition pattern. Escogear couplings contribute to the reliable production performance of these installations, with their high-quality gearing permitting a high output and sustainable production with the minimum downtime.

General machines

Engineered Escogear and Escodisc coupling products are used, among other things, to drive motor test stands, turbine simulators, brake test stands and balancing machines, to name but a few. Test benches are so specific that special custom designed couplings are often required to fulfill the needs of the application. The flexibility of ESCO Couplings engineering staff to understand customers’ requirements and to react quickly with short communication tracks means that our unique solutions are appreciated by the customer.

Petrochemicals & Refinery

Petrochemicals and refineries are a major field of application for Escodisc couplings as their use drastically reduces customers’ operational costs. For reliable production, it is essential that production processes run smoothly and for an extended period of time. Escodisc couplings are completely machined with an inherently high degree of balance and are ideally suited to drive rotating equipment such as pumps and compressors smoothly as Escodisc couplings’ main unique features are maintenance free and designed for "infinite life".

Power Generation

Electricity is at the heart of every household and factory and must therefore have maximum availability. All power plants use the same principle for operation; they convert energy into electricity. The energy can be of thermal, solar, wind or water origin. Escogear and Escodisc couplings connect the driving machines to the electric generators to smoothly transfer the mechanical energy created to the electricity generators.

Quarrying & Mining

Escogear couplings are built to support and be resistant to the heavy-work and extreme conditions of the mining industry. The major conveyor in the Coal Mine has been driven for years by an Escogear FST size 530, with a gearbox shaft with a diameter of 500 mm.

Rail

Today, public transportation increasingly relies on metro and tram systems, the most efficient way of commuting in large cities. These days distances between cities of up to 1000 km are easily covered faster, more efficiently and comfortably by high-speed trains than by planes. Downtown commuting by metro or street car has become the normal mode of transport in larger cities.

Esco Couplings therefore developed Escogear FTRN couplings, a complete range of traction couplings dedicated to the rail industry.

Renewable energy

Windmills applications need small, light couplings with high misalignment capacities and high-power densities, in combination with brake discs and overload devices.

Esco couplings has succeeded in designing such specific couplings. And what is more, the high axial capacity of Escogear couplings makes the construction of the driveline much simpler and in addition, assembly is faster and easier.

Steel & non-ferrous

From the Eifel tower to oil platforms, paper clips, artificial hips, cars, couplings and much more. It can be said that steel and non-ferrous materials are literally used as a basic material everywhere.

Textile

Textiles are not only used for clothing. Industrial uses as well as automotive applications these days demand reliable and highly productive machinery. These are typically 365/7/24 applications which apart from being robust must also be competitive. Escogear and Escodisc couplings fulfil requirements as a function of each application within the space envelope and the specification submitted, whether for torque and/or alignment and/or function.

Wood, Pulp & Paper

Whether for printing or writing by hand, paper is still an important part of quality communication and must therefore be of the highest quality, requiring that the fibers used are of the finest quality.

Different type of products

FTRN - series

FTRN - series

Multicrown gearing for high-misalignment rail traction
Torque up to 30,000 Nm+
Bore up to 120 mm+
DPU - series

DPU - series

Multidisc and flange packed subassembly version with anti-spark and anti-fly (optional)
Torque up to 23,100 Nm
Bore up to 220 mm
DPU - series

DPU - series

Multidisc and flange packed subassembly version with anti-spark and anti-fly (optional)
Torque up to 23,100 Nm
Bore up to 220 mm

Our recommended products

FTRN - series

FTRN - series

Multicrown gearing for high-misalignment rail traction
Torque up to 30,000 Nm+
Bore up to 120 mm+
DPU - series

DPU - series

Multidisc and flange packed subassembly version with anti-spark and anti-fly (optional)
Torque up to 23,100 Nm
Bore up to 220 mm

Product Certificate

Atex

esco-atex-product-certificate

The ATEX directive is a European directive describing what equipment and work environment is allowed in an environment with an explosive atmosphere.
The ATEX certificate is only deliverable with a purchased product.

DISC Couplings - GEAR Couplings

The US equivalent of the EU ATEX directive is the HAZLOC standard which defines and classifies hazardous locations such as explosive atmospheres.

Company Certifications

ISO 9001: 2015

esco-iso-9001-company-certifications

ISO 9001: 2015 sets out the criteria for a quality management system. This standard is based on a number of quality management principles including a strong customer focus, the motivation and implication of top management, the process approach and continual improvement.

Iris

esco-iris-company-certifications

IRIS stands for International Railway Industry Standard. It is a globally recognized standard unique to the railway sector for the evaluation of management systems. The IRIS certification is a warranty that our internal processes are set up to meet the stringent requirements of the railway industry.
