Gear type couplings

f-series

F Series

Multicrown gearing
Torque up to 5,040,000 Nm+
Bore up to 1,130 mm+
N

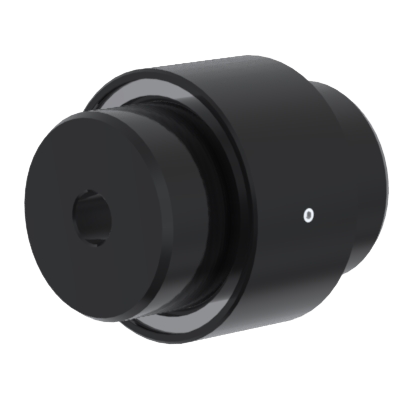

N - series

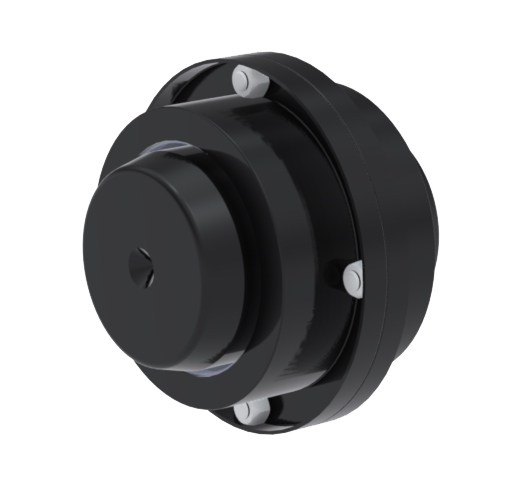

Continuous geared sleeve with steel covers, basic design
Torque up to 2000 Nm
Bore up to 85 mm

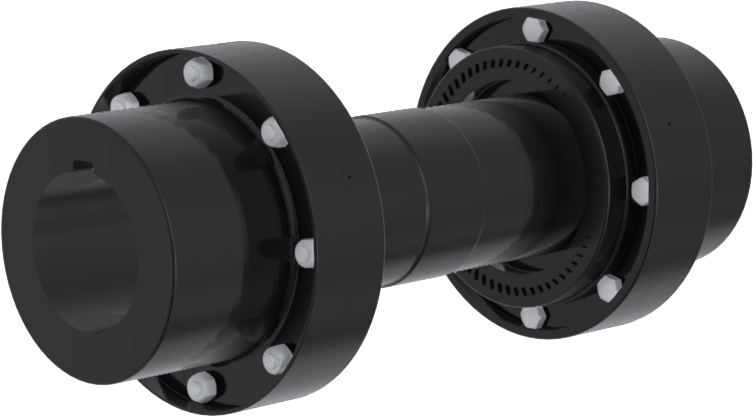

High speed - series

High speed - series

Multicrown gearing version application-wise customized with weight-optimized flanges and hubs, oil or grease lubricated, balanced for high rotation speed up to 20,000rpm

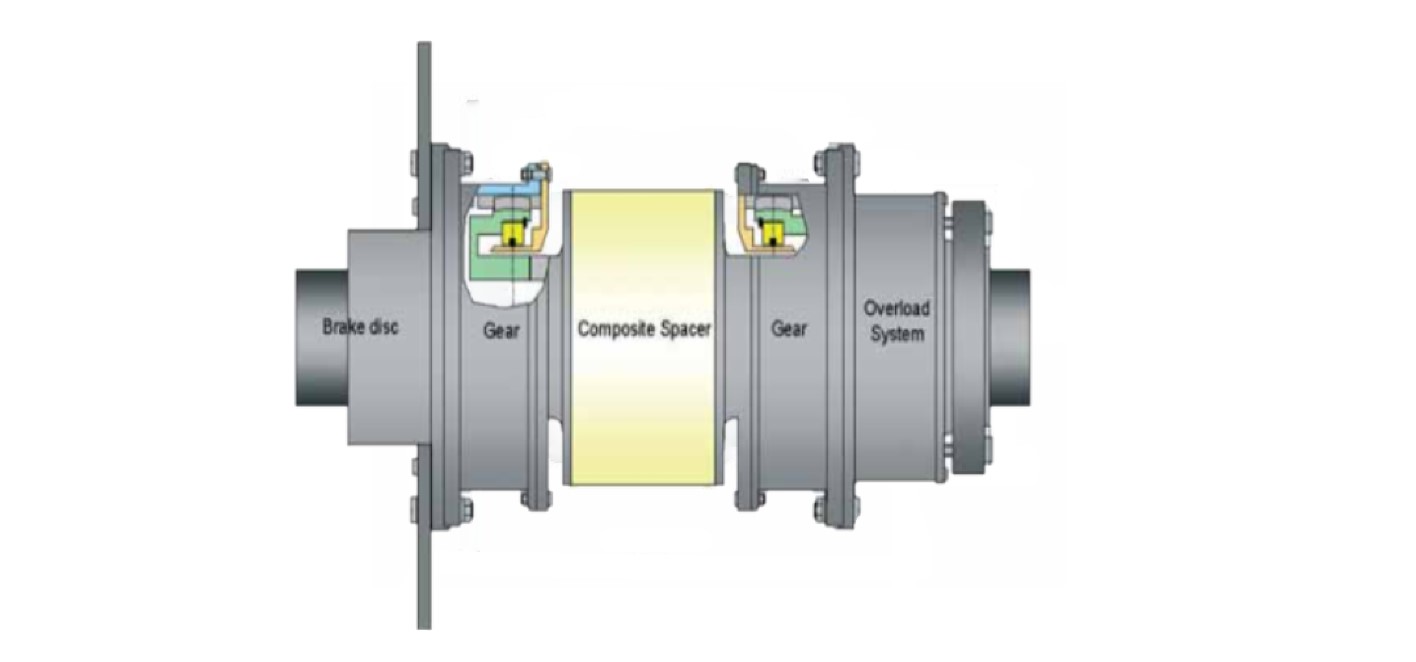

esco-gear-fwmo-couplings

FWMO - variant

Multicrown gearing optimized for wind mill applications accommodating misalignment combinations up to 2 (4) degrees
Torque up to 260,000 Nm
Bore up to 240 mm

Disc type couplings

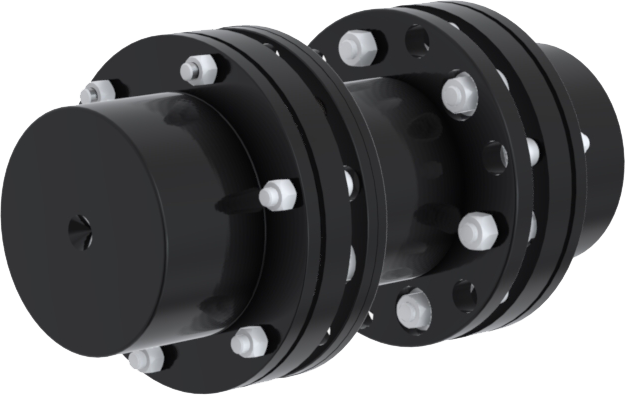

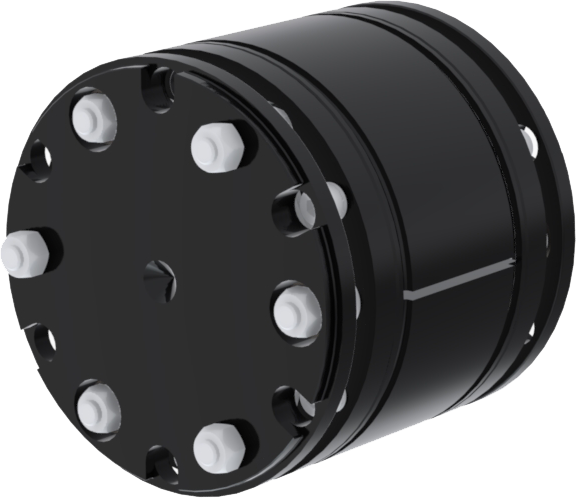

Disc Coupling - DPU Series

DPU - series

Multidisc and flange packed subassembly version with anti-spark and anti-fly (optional)
Torque up to 23,100 Nm
Bore up to 220 mm

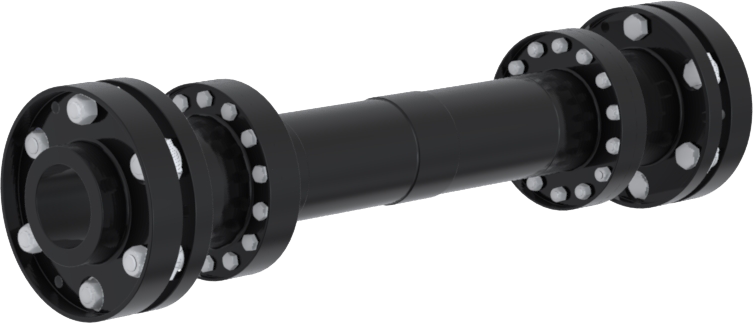

High speed series

high-speed - series

Multidisc pack subassembly version application-wise customized with weight-optimized flanges, anti-spark and anti-fly, balanced for high rotation speeds of up to 22,000 rpm

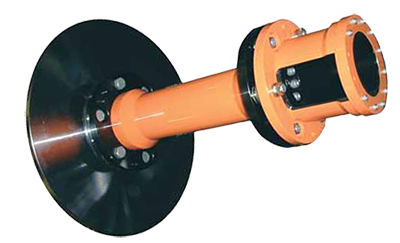

dwno

DWMO - variant

Multidisc pack subassembly version application-wise customized optimized for windmill applications, accommodating misalignment combinations up to 2 degrees
Torque up to 260,000 Nm
Bore up to 370 mm

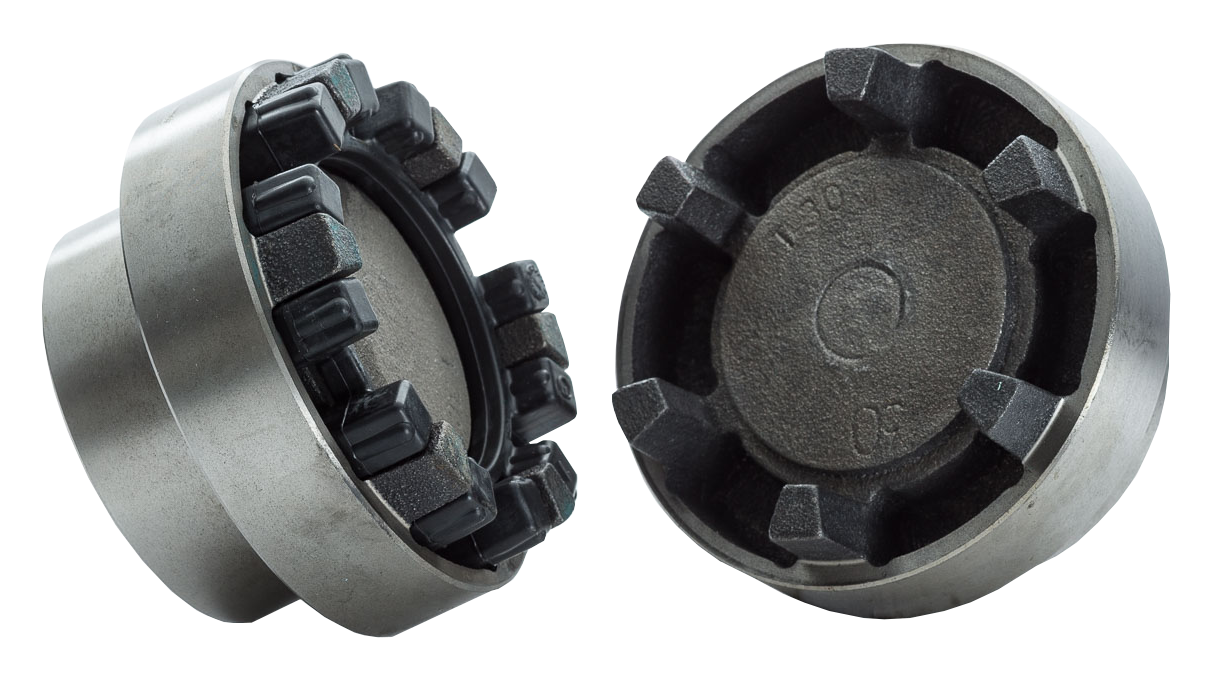

Elastic type couplings

Grid type couplings

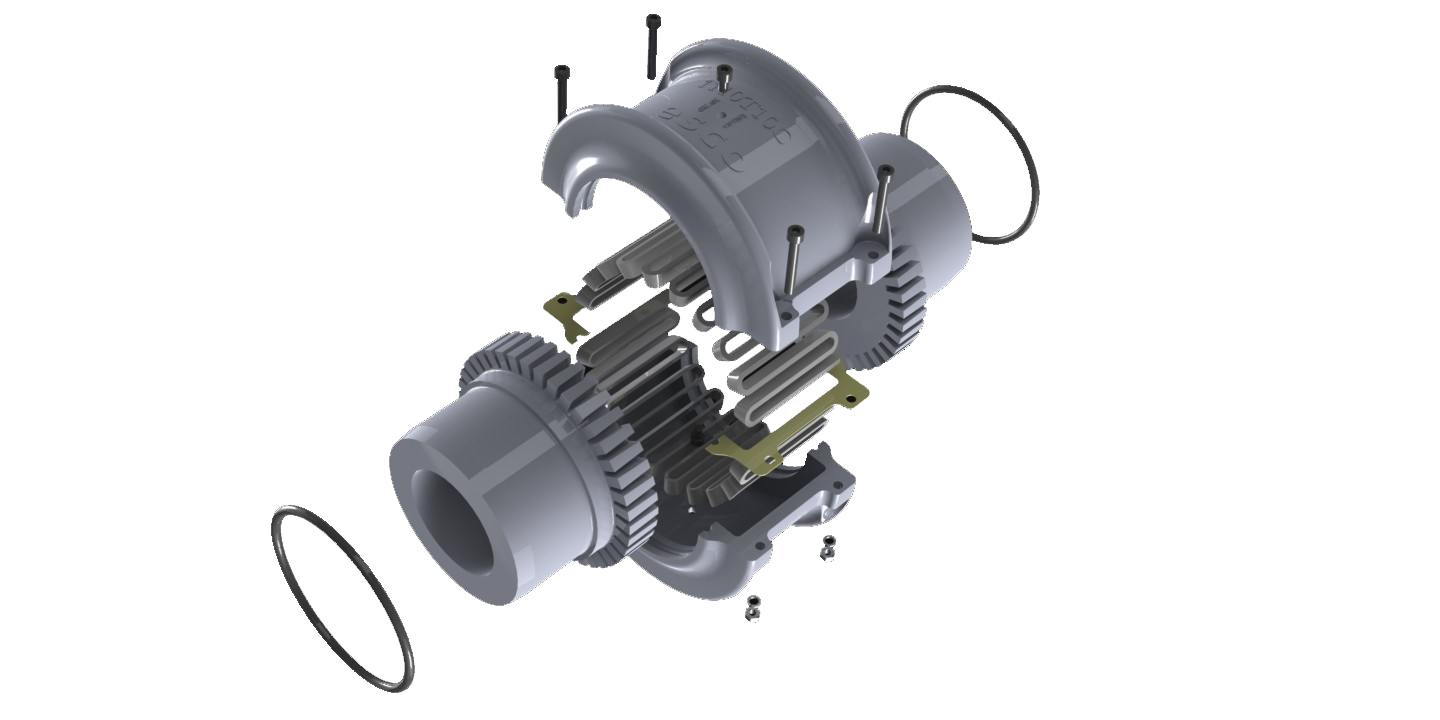

Grid

ESCOGRID - SERIES

Characteristics of the Escogrid – series couplings:



The Escogrid series couplings have a lubricated design that combines the economy and high torque

Diaphragm type couplings
