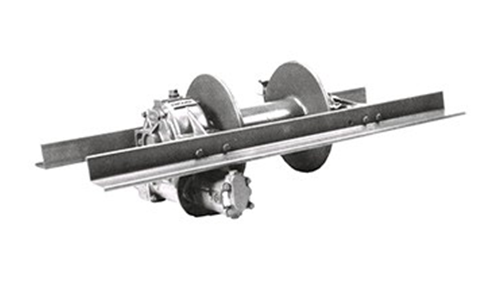

Worm Gear Winches - Low Mount

Worm Gear Winches

The Low Mount Worm Gear Recovery Winches are high performance products designed to provide many years of service.

Features (depending on model)

Standard features of the Low Mount winches:

  • Internal drag brake reduces back spinning when drum is disengaged
  • Drum clutch operates in sealed worm gear housing
  • Self-locking worm and gear set
  • Adjustable dry band type worm brake
  • Large capacity ductile iron cable drum with a bolted clutch plate
  • Ground and polished, heat treated alloy steel drum shaft
  • Freespool clutch with negative draft jaws for positive engagement under load
  • Lightweight Aluminium Housing
  • Rugged and compact design
  • Compact heavy duty construction
  • High strength aluminium bronze worm gear for increased pulling power and long gear life
  • Oil-cooled, fully adjustable automatic worm brake
  • Tapered roller bearings providing extra capacity in carrying worm thrust and radial loads


Optional features:

  • Available with Mechanical or Hydraulic Drive
  • Hydraulic Motor Displacements
  • Cable Drum size
  • Ratios
  • Mounting configurations
  • 2-Speed Hydraulic Motor
  • Extension Shaft
  • Bumper Kit available

Applications

Caterpillars, tracked vehicles
